capacity K/W: 12KW

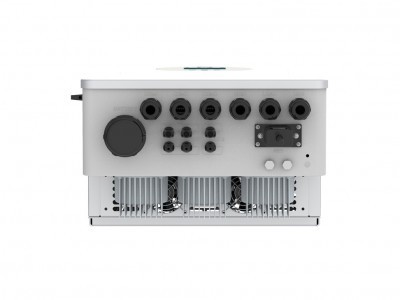

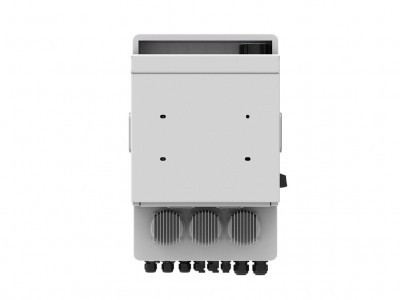

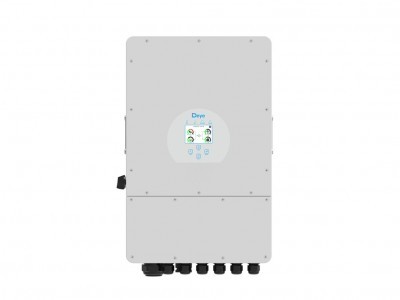

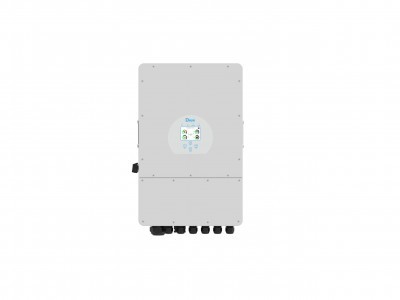

SUN-12K-SG04LP3 | 12KW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery

SUN 12K-SG is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.

• 48V low voltage battery, transformer isolation design
• 6 time periods for battery charging/discharging
• Max. charging/discharging current of 240A
• Frequency droop control, Max.16pcs parallel
• DC couple and AC couple to retrofit existing solar system
• Support storing energy from diesel generator
• Supports three phase unbalanced output
• Unique Smart Load application and Grid peak shaving function
• Certified by UL, CE, IEC, VDE, NRS, VFR, AS4777.2, CEI and INMETRO etc.

 (To see data sheet click here)

5 Years warranty
