capacity K/W: 5KW

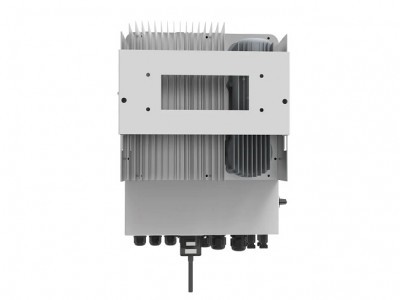

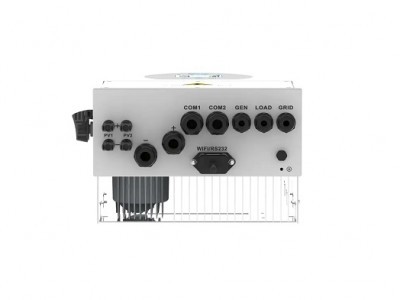

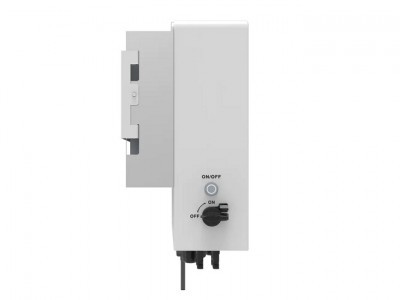

SUN-3.6/5K-SG03LP1-EU | 5KW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery

SUN 3.6/5K-SG,hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 3.6/5K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout. It equipped with RS485/CAN port for battery communication.

• Colorful touch LCD, IP65 protection degree
• 6 time periods for battery charging/discharging
• Max. charging/discharging current of 190A
• Frequency droop control, Max.16pcs parallel
• DC couple and AC couple to retrofit existing solar system
• Support storing energy from diesel generator
• 48V low voltage battery, safe and reliable
• Unique Smart Load application and Grid peak shaving function
• 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well

(To see data sheet click here
